Product Configuration


Detector Host	Extension Rod (GY81S)	Synchronous Display (GY81S)	HC-GYS1Ф16 Rebar Scanner Calibration Block

Power Adapter USB Cable	Bluetooth Adapter	Instrument Carrying Case

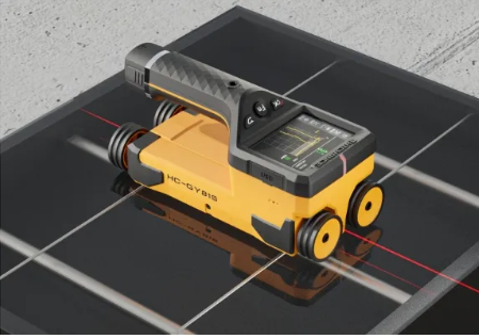

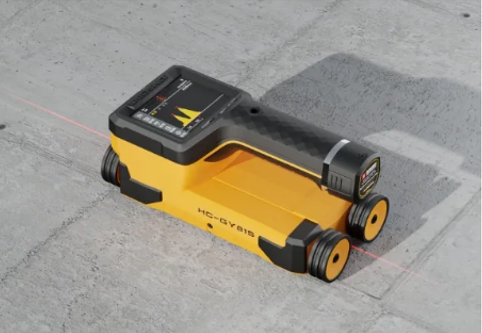

Thickness Detection Mode	Waveform Detection Mode

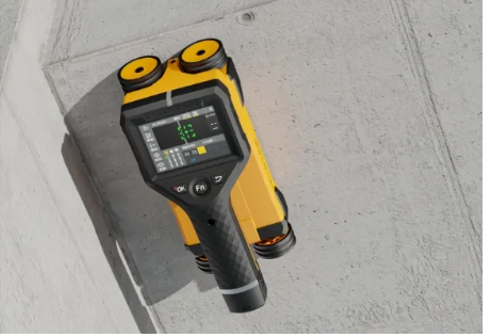

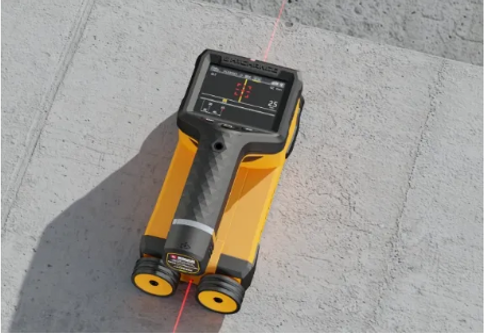

JGJ Mode	Grid Scanning Mode

The HC-GY81/GY81S integrated rebar scanner is a portable intelligent non-destructive testing device used to inspect the construction quality of reinforced concrete structures. It can detect rebar cover thickness, rebar position, orientation, and distribution, and can also detect magnetic and conductive bodies within non-magnetic and non-conductive media.

Featured Functions

• High-quality appearance, 3.2-inch high-resolution color LCD screen with capacitive touch, brand new U design, with two themes, making human-computer interaction more user-friendly;

• 1.54-inch brand new synchronous display with capacitive touch screen, wireless reverse control of the host, making detection safer and more efficient without climbing (only supported by HC-GY81S)

• Built-in full network 4G module, supports base station positioning for fast indoor and outdoor location; built-in temperature sensor to detect environmental temperature changes, intelligent calibration reminders for more accurate detection data;

• Optimized rebar identification algorithms in various scanning modes for more accurate rebar positioning,

• Thickness detection mode with cover accuracy up to 0.1mm, supports dual AD value prompts on left and right, with automatic center reading;

• JGJ detection function enables single-point re-measurement, automatically generates on-site measurement point thumbnails, custom detection sequence to meet testing specification requirements;

• Added block detection mode, upper computer can generate 3D models;

• Built-in low-power Bluetooth chip, connects to Haichuang data platform APP for real-time upload of detection data;

• Built-in large-capacity lithium battery, low power consumption design, can work continuously for about 24 hours after full charge

• PC side added Bluetooth adapter for wireless transmission of instrument data, making data reading more convenient

• Professional detection data processing and analysis software, easily completes data analysis, processing, printing, and report exporting.

Technical Specifications

Host Parameters	Specifications
Applicable Cover Thickness Range (mm)	Ø6~Ø50
Testing Range (mm)	1~210
First Range	1~120
Second Range	5~210
Cover Measurement Error (mm)	1~80: ±1 81~120: ±2 121~210: ±4
Diameter Estimation Mode	Available
Data Transmission Mode	USB cable transmission, PC Bluetooth reading
Power Supply Mode	Rechargeable 18650 lithium battery, working time ≥24h
Screen	3.2-inch color LCD screen (320x240 pixels)
Storage Capacity	10,000 components / 5,500,000 measurement points / waveform mode cumulative storage up to 5500 meters
Bluetooth	Available

Parameter Items	Specification Indicators
Screen Size	1.54-inch color LCD screen (240x240 pixels)
Transmission Distance	15m
Operation Mode	Touch + Buttons
Communication Mode	Bluetooth
Working Time	More than 24 hours
