Instrument Overview

This instrument consists of a pressure station, a pressure host, and a computer software system. The main function of the pressure station is to provide liquid pressure to the pressure host. The pressure requirement of the pressure station is that the lower limit must be higher than the higher pressure required by the pressure host. This part uses a large flow, low noise, high pressure, maintenance-free plunger pump. By connecting pressurized softened water externally, it can automatically replenish water, ensuring pressure reliability and becoming a reliable pressure source. The pressure host consists of a pressure micro-control part, automatic pressure replenishment, and electric pressure relief parts. The pressure micro-control part uses a microcomputer MCU control, equipped with a high-resolution, high-speed ∑-△ 16-bit analog-to-digital conversion chip, communicates with the computer in real time, and can automatically replenish and relieve pressure according to the pressure situation. The software system connects to the pressure host through the computer's RS232 serial interface, providing functions such as parameter setting, calibration, pressure relief, zero adjustment, amplitude adjustment, test curve plotting, test record saving, and printing test reports.

This instrument is used to determine the pressure resistance failure time or the maximum instantaneous burst pressure value of thermoplastic pipes and composite pipes (such as PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C, and aluminum-plastic composite pipes) under long-term constant internal pressure and constant temperature. The tested pipe or fitting will automatically stop when rupture occurs or the test is completed, and it can save the pressure curve and print the test report. It is an economical, practical, multifunctional, and highly automated testing machine, essential for various testing agencies, research institutions, and pipe manufacturers.

Standards Compliance

Instrument Features

1. This machine is multi-functional, capable of testing long-term static hydraulic pressure of pipelines, conducting pipe burst tests, and measuring the thermal stability of thermoplastic pipes.

2. The machine's software control is rich in functions, displaying pressure, time, and status in real time while storing all parameter data. It can also identify eight test states: pressure increase, pressure replenishment, pressure relief, overpressure, operation, completion, leakage, and rupture. It automatically determines time parameters such as "effective test time," "invalid time," and "remaining time." It automatically adjusts the relationship between "set time" and "effective time" so that the test only stops automatically when the "effective time" reaches the "set time." The rich software interactive interface supports multiple languages to meet users from different countries/regions.

3. The machine control uses embedded computer control with a 19-inch large screen display, requiring no external PC or computer to complete all work, making operation convenient and simple. Each workstation is independent and can be operated separately. The machine has three levels of monitoring: first-level fine monitoring for 1 hour, second-level holiday monitoring for 48 hours, and third-level comprehensive monitoring throughout the process, including constant temperature medium temperature monitoring. The eight major functions include leakage warning, rupture identification, real-time monitoring, power-off pressure holding, power failure protection, automatic power restoration, printing, and storing test results.

4. Pressure control is stable with multi-level pressure energy storage control, constant pressure stability, using 0.5 aperture, high-precision electromagnetic valves from Taiwan, which do not clog and have a long service life. The test pressure accuracy is high, using well-known domestic brand pressure transmitters. The pressure control range is wide, from 0.4MPa to full scale.

5. This machine can set preprocessing parameters, and the test will start automatically after preprocessing is completed. Pressure units can be freely switched between MPa, Bar, and PSI to accommodate operators from different countries.

6. The main control system of this machine can be connected to a thermostatic medium box control system, both of which can control temperature settings, test start and end functions, making operation convenient and simple. This machine is suitable for a wide range of pipe diameters, applicable for pipe testing within the diameter range of Ф10mm to Ф1600mm; it has good safety performance with safety protection measures in electrical, mechanical, and software parts. It features password protection to prevent unauthorized personnel from abnormal operation of the instrument. The instrument is aesthetically pleasing, with quick-connect fittings between systems, easy assembly, safe and reliable, and occupies little space.

7. The pressure station of this machine can be independently controlled and is self-contained; one pressure station can connect to multiple pressure hosts. The main components use imported pump bodies, with high pressure, large flow, and stable performance. The bladder accumulator stabilizes energy storage, reduces power consumption, compensates pressure safely and stably. The instrument can automatically replenish water through externally connected pressurized softened water, ensuring the reliability of total pressure.

Technical Parameters

Configuration:

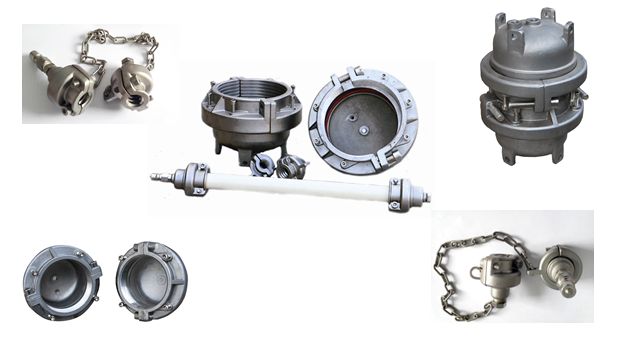

Pipe Material Type A Test Fixture

Instrument Overview

This fixture is suitable for pipe hydrostatic burst testing machines. It is a Type A plastic pipe pressure test fixture that can firmly clamp the pipe material and is a key auxiliary tool for plastic pipe pressure testing machines. It has a collet with reverse teeth inside; when the collet screw is tightened, the collet contracts, embedding the reverse teeth into the outer wall of the specimen to clamp it. The connecting screw tightens the collet on the specimen. It is suitable for end sealing of various pipe materials and fittings such as PE, PVC, PP-R, and steel-reinforced composite pipes.

Instrument Features

• Cast Type A structure fixture, no intermediate tie rod needed, with high pressure resistance.

• Achieves assembly method of clamping first then sealing, with a 100% success rate of sealing on first clamp.

• Radial sealing, suitable for a wide range of pipe materials (applicable to PE, PVC, PP-R, steel-reinforced composite pipes, etc.)

• Split-tooth clamping structure, easy to install, can achieve automatic centering.

• Large-diameter fixtures accommodate a wide range of pipe diameter changes; specimens can be easily inserted into end caps without reshaping before testing.

• The fixture is lightweight, each component is equipped with lifting devices for easy handling, assembly is convenient and fast without special clamping devices, resulting in high work efficiency and low long-term costs. Assembly time for large-diameter fixtures above Φ200 should be less than 30 minutes; for Φ200 and below, assembly time should be less than 10 minutes.

• Cast fixtures are made of 304 stainless steel, treated with pickling and passivation after casting, providing strong corrosion resistance and long service life.

• Equipped with lifting chain devices to prevent issues such as rupture of thin-walled pipe specimens and difficulty lifting bottom fixtures; hooks are provided for convenient hanging.

• Fixtures are marked with model information.

Radial External Sealing Fixture Model Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ180, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600, etc.
