Overview

The SME-CTB-CM intelligent high-precision constant-temperature bath is a versatile low-temperature constant-temperature water bath platform developed using our company’s proprietary technology. The instrument employs a high-precision data acquisition circuit and semiconductor refrigeration technology, and utilizes a fuzzy PID control algorithm to achieve highly accurate and stable temperature control.

This instrument features a user-friendly 4.3-inch touchscreen for convenient operation, with intuitive and easy-to-use parameter settings. The system integrates heating, cooling, and circulation functions in an organic manner, and can display real-time temperature curves during experiments.

Compared to traditional compression-based refrigeration, the semiconductor cooling technology used in this product also boasts advantages such as small size, light weight, no noise, easy maintenance, and high reliability.

Product Application Scope

Suitable for small-capacity water temperature constant-temperature control;
Temperature control range: 5–40℃;

Main Technical Parameters

How to use

[Place]

The instrument has an air intake on the side and a heat dissipation outlet at the rear. When placing the instrument, ensure that there is sufficient clearance around it.
Place the container on a flat pad that does not easily conduct heat.

[Installation]

Insert the power plug;
Connecting water pipe:
- The host’s inlet, outlet, and the two water ports of the sink container can be connected with hoses—there is no specific order for these connections.
- The hose cannot be bent, causing the water to stop flowing.
Insert the sensor connector on the sink container into the host’s sensor interface.

[Injection]

Pour water into the container, ensuring that the liquid level does not exceed the container’s inlet for now.
[Power on] and turn on [Cycle]. Observe that water is being injected into the container's inlet, then add more water to the container until it reaches the desired liquid level. (The liquid level must not be lower than the height of the temperature sensor probe in the water tank.)

[Temperature Control]

If the set temperature is more than 5℃ higher than the ambient temperature, do not turn on the [Cooling] switch; otherwise, please turn on the [Cooling] switch.

[Note]

To achieve a lower dielectric stability temperature, you can use the following methods:
1. Lower the laboratory air conditioning temperature;
2. Improve the thermal insulation performance of containers;
When the instrument is left unused for an extended period, please drain all the water from its tubing.
The set temperature must not be lower than the solidification point of the medium!

Product Configuration

Serial number	Name	Quantity	Note
1	Host	1 unit	The power socket has a built-in spare fuse (3A).

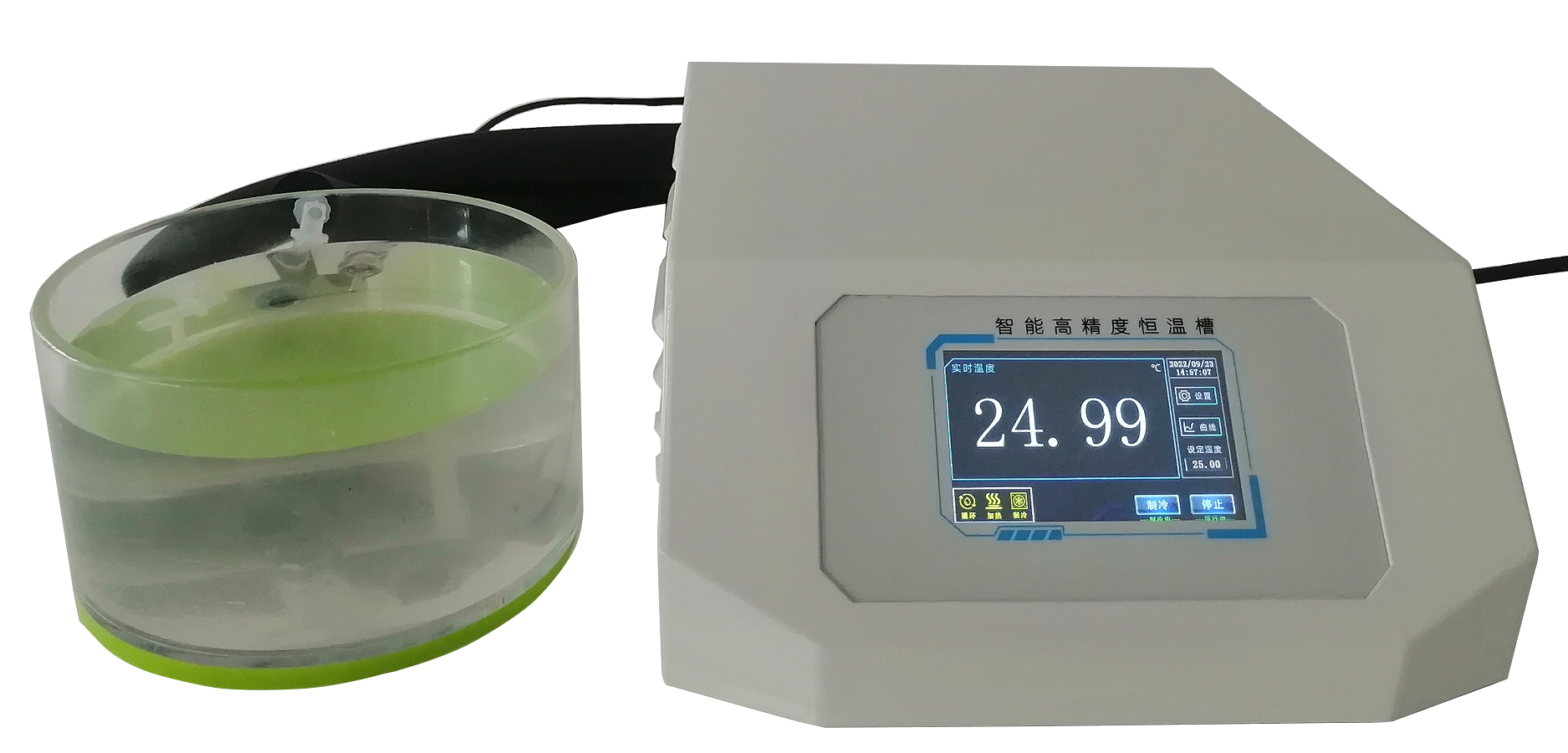

2	Container	1 one	[Standard Model] Acrylic: Diameter 180 mm, Height 100 mm, Wall Thickness 5 mm

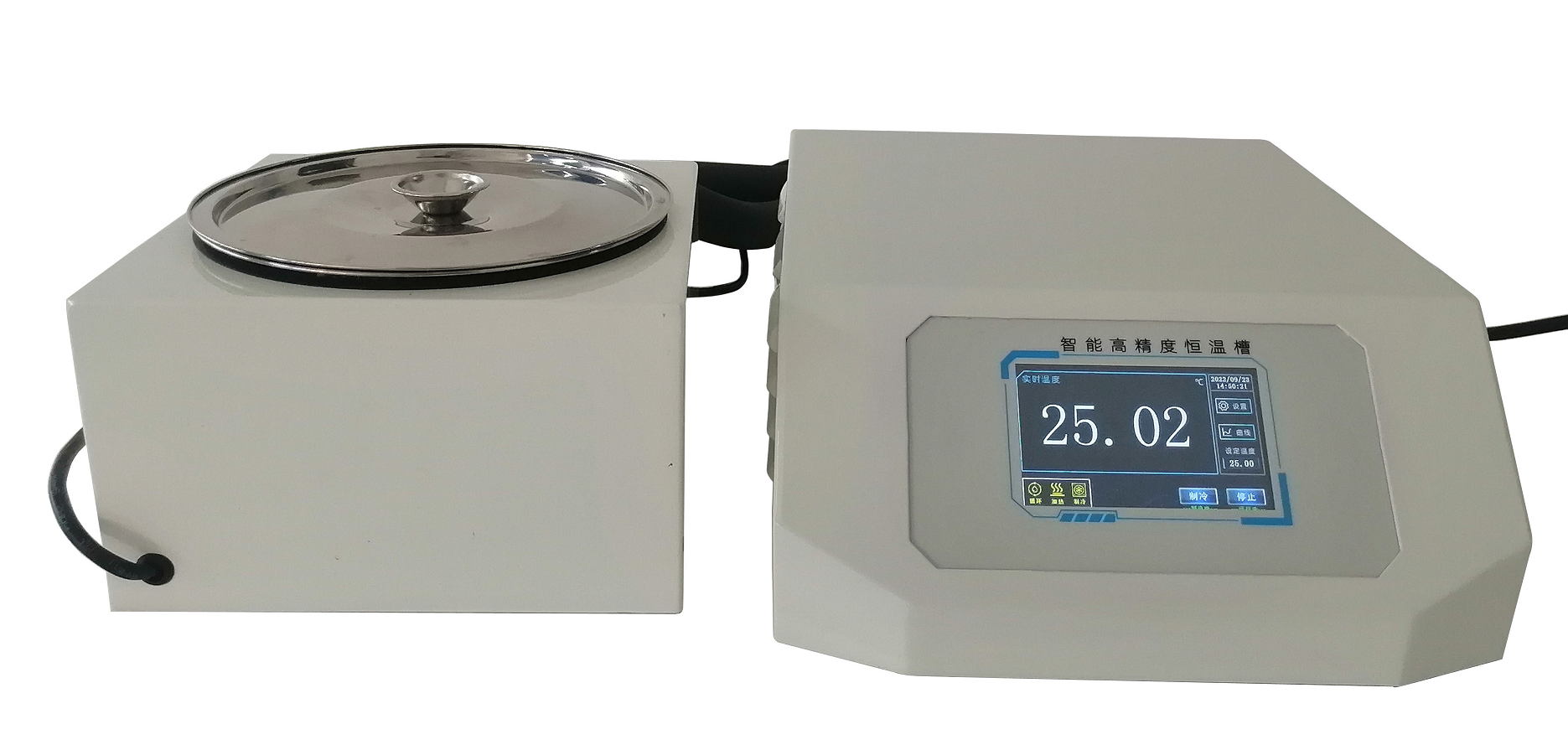

2	Container	1 one	[Enhanced] Stainless Steel Container: Diameter 180 mm, Height 120 mm
3	Insulated hose	2 roots	0.6m
4	Power cord	1 root	Three-core
5	Instructions	1 copy
6	Certificate of Qualification	1 sheet

Company Profile

Hebei Yinfeng Experimental Instrument Co., Ltd. is a high-tech enterprise dedicated to the research and development, production, and sales of experimental instruments. The company is headquartered in Hebei Province, relying on the strong industrial foundation and technological innovation resources in the Beijing Tianjin Hebei region. It is committed to providing high-precision and high reliability testing equipment and solutions for material testing, engineering quality control, scientific research experiments and other fields.

Customized Delivery Process

We provide customers with full-process services ranging from pre-sale consultation, customized solution design, equipment installation and commissioning to after-sale technical support.

Online Communication

Provide Custom Drawings

Merchant Quotation

Sign A Contract

Processing And Production

Packaging And Distribution

Confirm Receipt Of Goods

Successful Transaction

Fully automatic asphalt mixture mixer

CNC Asphalt Penetration Tester SZR-3

Asphalt Penetration Low-Temperature Water Bath

Email:

qcj@cnhblabequipment.com

Whatsapp:

+86-15931715356

Inquire Now

Technical Parameters	Standard Type (B)		Enhanced (Z)
Container size	Φ172*110mm		Φ180*120mm
Display range	-10.00～40.00℃, error: ≤±0.5%F.S.;
Temperature control accuracy	±0.05℃
Temperature control range (1.5L constant temperature control)	Lower constant temperature	Higher constant temperature	Lower constant temperature	Higher constant temperature
	15℃ lower than the ambient temperature	40℃	23℃ lower than the ambient temperature	40℃
Cooling rate (1.5L)	30-minute cooling	60-minute cooling	30-minute cooling	60-minute cooling
	10℃	14℃	13℃	17℃
Overall machine power	≤400W Cooling power: 100W Heating power: 220V 270W
Circulating flow	≥1.2 L/min
Power supply	220V ±10% 50Hz ±1Hz
Work environment	Laboratory standard environment: temperature ≤ 28℃, relative humidity not exceeding 85% RH, and non-corrosive gas atmosphere.
